contenedor de almacenamiento sala fría congelada para carne y pescado customerized
contenedor de almacenamiento sala fría congelada para carne y pescado customerized
contenedor de almacenamiento sala fría congelada para carne y pescado customerized
contenedor de almacenamiento sala fría congelada para carne y pescado customerized
contenedor de almacenamiento sala fría congelada para carne y pescado customerized
contenedor de almacenamiento sala fría congelada para carne y pescado customerized
precio
US $36000
modelo
Cuarto frio
MOQ
1 set

propiedad

Refrigerante
Freón R22 (R404A) para la selección
Estructura
Montado
Adecuado para
Fábrica
Sistema de refrigeración
Unidad de compresor de marca
Uso
Congelador fresco, congelado, congelador
Sistema de refrigeración
Unidad de compresor de marca
Paquete de transporte
Embalaje marinero
Servicio postventa
Servicio de asistencia

Evaluacion

Descripción

Product Description

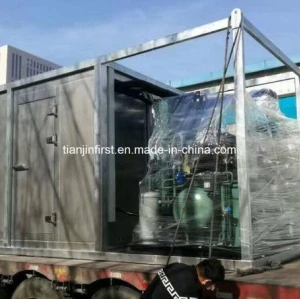

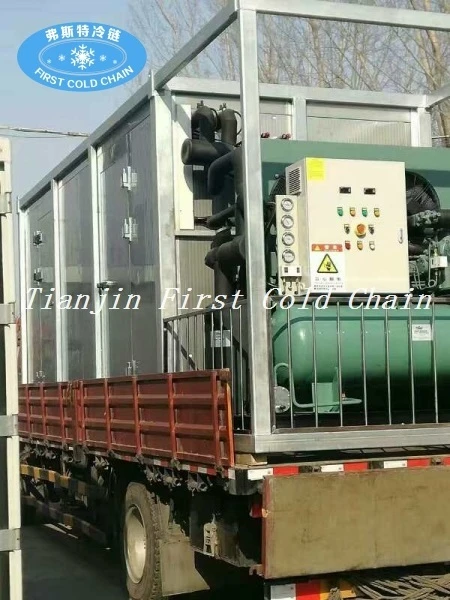

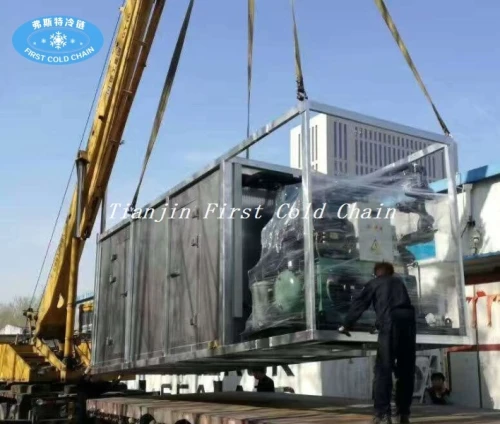

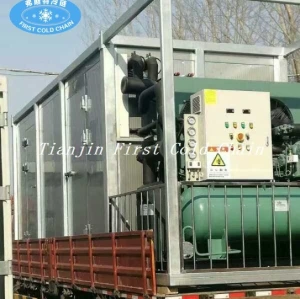

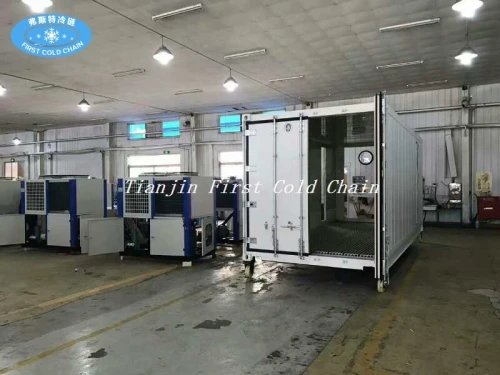

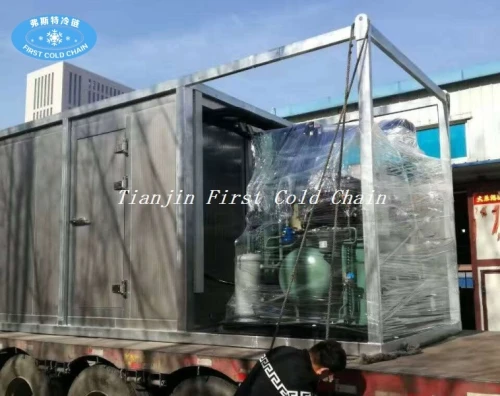

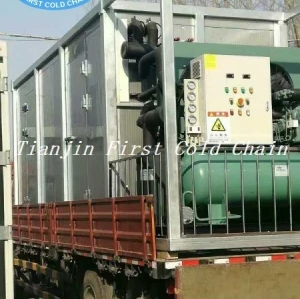

The moving blast freezer container for forign sale is designed with the size of the latest international standard container whose size is easy for exporting transportation, and the appearance looks beautiful. with the high density heat insulating it can keep the internal temperature, and at the same time it can increase the internal storage space because of its slight and thin maternal, so the worker can worke in the freezer expediently. The moving blast freezer container has 2 kinds. One kind is 20ft and the other kind is 40ft,and it is assembled with 30hp 2-stage compressor unit(30hp low temperature screw compressor unit ) and 75hp low low temperature screw compressor unit ,you can choose the type of moving blast freezer container according to the freezer capacity and origin restriction and other factors

Parameters

Model

Outside size

Frozen storage size(mm)

Refrigerant

Temperature

Freeze

 capacity

L

W

H

L1

W2

H3

20ft

6058

2438

2591

3890

2280

2220

R404A

-40℃

2~2.5T/8H

40ft

12192

2438

2896

8520

2280

2510

R404A

-40℃

4~4.5T/8H



Refrigeration compressor unit parameters

Model

Refrigerating capacity

Power

(kw)

Size of the unit(mm)

Refrigerant

Cooling type

Fluorine filling volume

L

W

H

S6F-30.2

21.1kw

16.84kw

2200

1300

1900

R404A

Air cooling

400kg

HSN5363-30

23.2kw

25.4kw

2200

1400

1900

R404A

Air cooling

400kg

HSN7471-75

46.9kw

40.8kw

2650

1250

2100

R404A

Air cooling

800kg


Blast Freezer House/Moving Blast Freezer Room
